Magnetic Drum Separator

Magnetic Drum Separators are used for Automatic separation of Magnetic Particles from Raw Material. Magnetic Drum Separators are available In many designs.
Here available in Single, Double and Multi Stage Drum Separator

Magnetic Drum Separator, Double Drum Magnetic Separator, Coolant Magnetic Separator

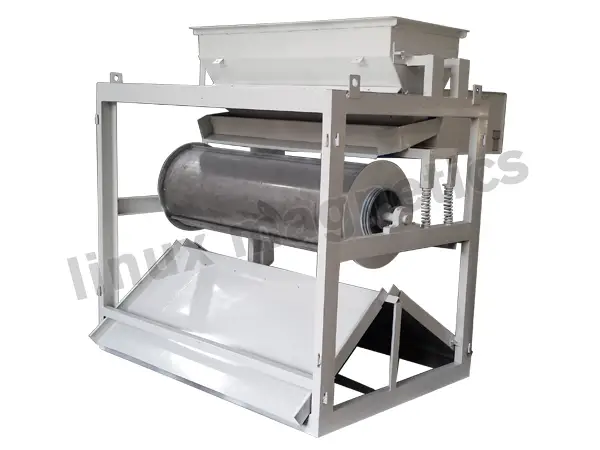

Single Drum Magnetic Separator

Single Drum Type Magnetic Separators are available for in medium and high intensity magnet. The material passes through the magnet drum type Machine respectively. These are widely used for separation of iron contamination from Minerals, Chemicals, Refractories and many other products. High power permanent Magnetic Plate is provided at material outlet. Modern An-Isotropic Permanent Magnets are used having highest magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution

Magnetic Separator Manufacturer

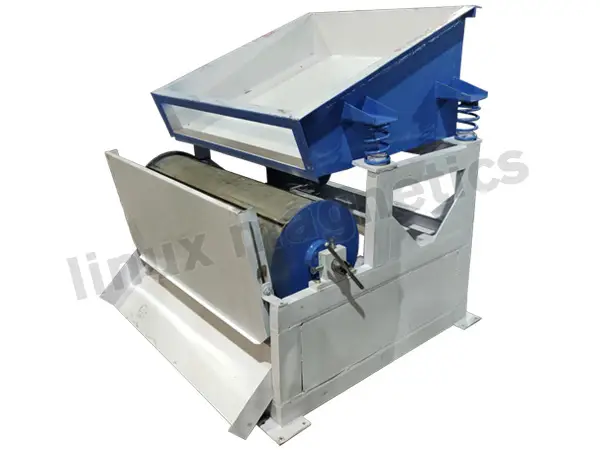

Double Drum Magnetic Separators

Double Drum Type Magnetic Separators are available for highest purity. The material passes through the magnet twice time drum separator and High power permanent Magnetic Plate is provided at material outlet. They are comprised of a stationary permanent magnet, either standard Ferrite Magnets or High Power Rare Earth Magnets enclosed in a non-magnetic stainless-steel drum. Product flow is diverted so that it falls onto the top and flows across the surface of the drum. Ferrous matter contained in the product flow is drawn to the drum's surface by the powerful magnet housed inside.

Magnetic Separator Suppliers

Multi Stage Drum Separators

Triple & Multi Drum Type Magnetic Separators are available for highest purity.
The Permanent Drum Separators are available in standard drum diameters of 300 mm to 1200mm width range from 300 mm to 2500 mm. Other sizes can be made as special to your requirement. The larger the diameter and width of the drum the greater is the volume of material which can be hand land.
These are generally manufactured as custom made where the separation is required to the highest purity of material .The material to be made free of iron particles is passed over the first magnetic drum and again in continuos process fed to the second and similarly to the third. This process ensures the purity of the material of the highest order.
